Products - 4K Vehicle ANPR (Automatic Number Plate Recognition)
4K Ultra HD
Vehicle Forward Facing ANPR Camera
4K Ultra HD
Vehicle Roof Mounted ANPR Camera
IP67 High Speed
Vehicle Roof Mounted PTZ Dome Camera
IP66 High Speed
Vehicle Roof Mounted PTZ Camera
Vidi-Sync™ Patrol
ANPR-DC/DC-PSU
Vidi-Sync™ Patrol
ANPR Main Processor
Vidi-Sync™ Patrol
Fanless ANPR Main Processor
WIMS
Client - Automotive
3G/WLAN Wireless Router with a custom embedded Linux OS
WIMS Lite
Client - Automotive
3G/WLAN Wireless Router
WLAN / 3G / GPS
Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
Drivers ANPR
Touchscreen TFT Monitor
ANPR
Tablet
ANPR MPU Access Control
FIPS 201 Fingerprint Reader
Click thumbnails to view product detail below

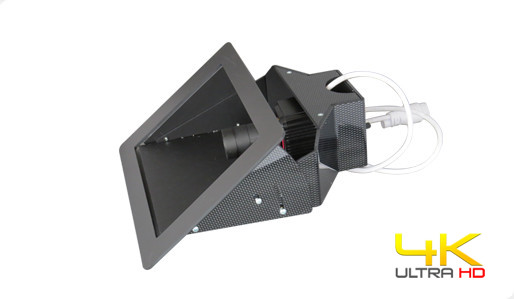

4K Ultra HD Forward Facing ANPR Camera
Key Features
- 4K Ultra-HD 12 Mega Pixel IP Camera
- 4~10mm and 12~50mm Motorized Mega Pixel Zoom Lens options
- Software controlled motorized IR cut filter
- Mounting via screen angle-adjustable carbon-effect ABS housing with anti-reflection shield
- IP54 (International Protection Rating)
- Ultra-high definition 3840 x 2160 resolution
- H.264 & MJPEG video streaming
- ONVIF and RTSP compliant

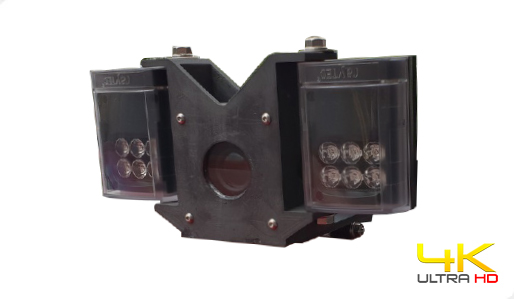

4k Ultra HD Roof Mounted ANPR Camera
Key Features
- 4K Ultra-HD 12 Mega Pixel IP Camera
- 4~10mm and 12~50mm Motorized Mega Pixel Zoom Lens options
- Software controlled motorized IR cut filter
- IP68 (International Protection Rating)
- Ultra-high definition 3840 x 2160 resolution
- H.264 & MJPEG video streaming
- ONVIF and RTSP compliant

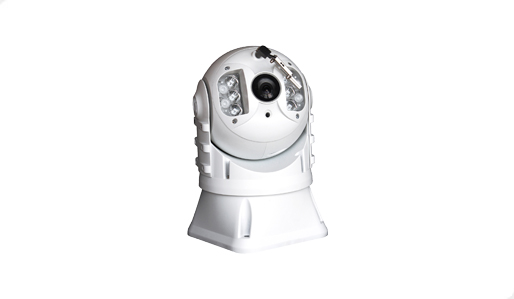

IP67 High Speed Vehicle Roof Mounted PTZ Dome Camera
Key Features
- 2MP 1080p Full HD Resolution
- 30X and 37X Optical zoom lens options
- Supports Multiple Video Interface options – IP (TCP/IP) / AHD / TVI / CVI and CVBS
- Ultra-low light performance (0.001 lux B/W mode)
- Auto-Adjusting motorized Infrared Led beam angle to optimize IR illumination to match zoom lens magnification.
- 3D Digital noise reduction
- Electronic Image stabilization
- Auto-focus and automatic exposure control
- ONVIF 2.4 protocol (for remote PTZ support)
- RS-485 (for local PTZ support)
- PTZ – horizontal 80°/sec rotation, vertical 60°/sec tilt.
- PTZ presets and guard patrol support
- H.265, H.264 and MJPEG image encoding support.
- RTSP (real-time streaming protocol)
- P2P cloud monitoring support
- Built-in surge protection and voltage regulator.
- IP67 Outdoor environment rating

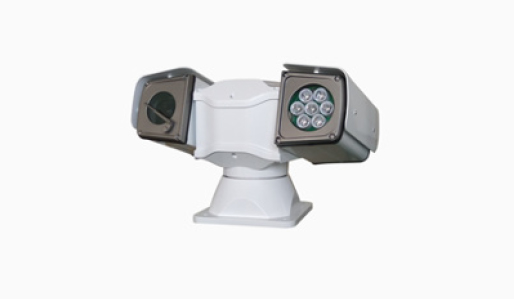

IP66 High Speed Vehicle Roof Mounted PTZ Camera
Key Features
- 4MP and 8MP HD/UHD Resolution options
- 30X and 37X Optical zoom lens options
- Supports Multiple Video Interface options – IP (TCP/IP) / AHD / TVI / CVI and CVBS
- Ultra-low light performance (0.095 lux)
- Auto-Adjusting motorized Infrared Led beam angle to optimize IR illumination to match zoom lens magnification.
- 3D Digital noise reduction
- Electronic Image stabilization
- Auto-focus and automatic exposure control
- ONVIF 2.4 protocol (for remote PTZ support)
- RS-485 (for local PTZ support)
- PTZ – horizontal 120°/sec rotation, vertical 60°/sec tilt.
- PTZ presets and guard patrol support
- H.265 and H.264 image encoding support.
- RTSP (real-time streaming protocol)
- P2P cloud monitoring support
- Built-in surge protection and voltage regulator.
- IP66 Outdoor environment rating
- Built-in defrost and demist functions
Vidi-Sync™ Patrol ANPR-DC/DC-PSU
Key Features
- Input between 9 ~ 32V DC
- Programmable voltage thresholds
- Dual output voltages +12V & 19V DC
- Anti Thump output in automotive mode
- Motherboard startup/shutdown control by ON/OFF pulse or USB
- Highly customizable startup/shutdown timers via simple DIP switch config
- Low Power consumption
- HID-USB connection
- Built-in intelligent UPS / DC battery charger
- Built in 12V back-up battery (1200 mAh LiFePO4)
- Intelliget thermostatic fan temperature control
- Programmable relay output
- Programmable Spread Frequency Modulation for reduced EMI
Vidi-Sync™ Patrol ANPR Main Processor
Key Features
- Up to 6 COM ports, includes 2 x RS-232/422/485
- Supports dual display configuration by multiple interface: HDMI/DP
- Supports I2C, SMBus and DIO
- Wide temperature range endurance
- Low voltage 12~24V operation
- SSD Storage
- Ultra-High Performance 15,152 CPU benchmark spec.
- Industrial-grade cooling system
Vidi-Sync™ Patrol Fanless ANPR Main Processor
Key Features
- Up to 6 COM ports, includes 2 x RS-232/422/485
- Supports dual display configuration by multiple interface: HDMI/DP
- Supports I2C, SMBus and DIO
- Wide temperature range endurance
- Low voltage 12~24V operation
- SSD Storage
- Ultra-High Performance 15,152 CPU benchmark spec.
- Industrial-grade cooling system
WIMS Client Module - Automotive
3G/WLAN Wireless Router with a custom embedded Linux OS
Key Features
- Zero Config
- Ultra Secure P2P VPN Technology protects 3G / CDMA / WLAN and LAN to (AES-256) Mil-Spec standards
- Built in Embeded Linux OS for robustness and reliability
- 4GB Solid state compact flash memory
- Supports fixed IP multi-port addressing via DHCP sim cards
- PUSH Diagnostics / Alerts and Exception Reporting direct to your Maintenance Provider
- Embedded Linux Remote Agent syncs information to a Headend Server to give instant Fault Visability and Reporting via 3G and WLAN
- Supports Full Video Management including Playback / Preview and Backup via GPRS / 3G and WLAN
- Integrated Video Backup to a Secure Web-Based Video Vault with Video Sharing Feature for secure CCTV Evidence Distribution
WIMS Lite Client Module - Automotive
3G/WLAN Wireless Router
Key Features
- 3G/4G LTE data transmission
- Active auto connect
- Embedded watchdog , Auto recovery
- 2*2 4G/WIFI MIMO antenna
- Integrate 3G/4G LTE,WIFI,GPS feature
- One WAN, Five LAN(1LAN/1 Gbit LAN & 4 LAN/100Mbps) ports, Support VLAN,LAN Ethernet port
- One console port, One USB port,RS232 or RS485 Interface,4 line GPIOs
- SD data storage (Optional)
- One SIM card slot as standard (2 SIM option available on request)
- Remote management platform
- Supports wifi 802.11AC, 1.2Gbit
- Supports 50 WiFi users sharing
- Firmware version: Linux or Openwrt
WLAN / 3G / GPS Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
Key Features
- Single antenna provides cellular / WLAN + GPS for tracking
- IP67 rated
- High impact ABS plastic for long-life / durability
- Low profile - To reduce gauge increase considerations
- Vehicle wash proof
- Fully isolated from chasis earth faults
- RoHS Compliant

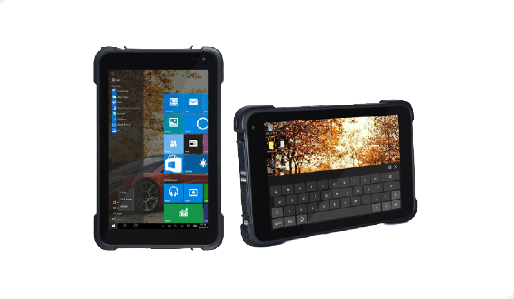

ANPR Tablet
Key Features
- Available in Capitative or Resistive Touch formats
- Widescreen HD display format
- Daylight readable display
- VGA Power and USB Touch control supplied via single mini-cable from PC USB port.
- Ultra-Wide operating temperature for vehicles in extreme climates
- VESA bracket mountable
- Windows 7 / 8 and 10 compatible
- Die-cast aluminium housing for lightness and strength
- 12VDC low power consumption

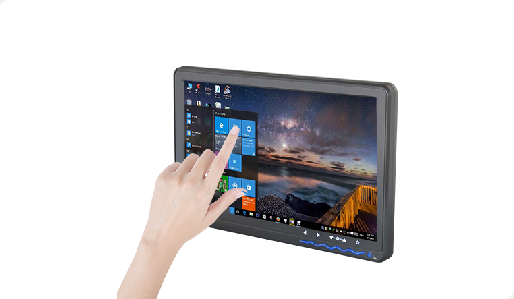

Drivers ANPR Touchscreen TFT Monitor

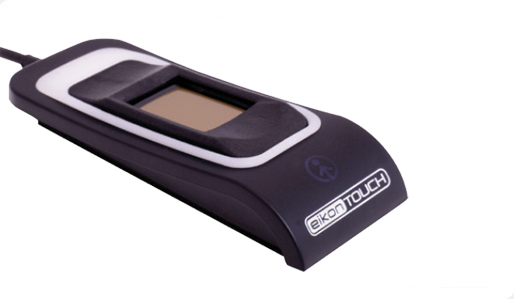

ANPR MPU Access Control FIPS 201 Fingerprint Reader
